Overview

This project is a production-ready Retrieval-Augmented Generation (RAG) chatbot that answers questions about Ontario real estate legal documents. It combines vector similarity search with GPT-4 to deliver accurate, context-aware guidance based on both formal documents and FAQs, all deployed on a serverless AWS stack.

The system includes a modern React frontend, a containerized AWS Lambda backend, a Pinecone vector database, and an ingestion pipeline that processes PDFs/DOCX from S3 into searchable embeddings.

Architecture

At a high level, the system consists of:

• Frontend (my-chatbot-frontend/)

  • ChatApp.tsx: main chat container managing state and API calls.
  • components/ChatMessages.tsx: renders user and assistant messages with markdown.
  • components/ChatInput.tsx: input + send UI.
  • services/api.ts: service layer for calling the /chatbot API.
  • Deployed as a static site on AWS S3.

• Backend (root lambda_function.py)

  • lambda_handler: AWS Lambda entry point invoked by API Gateway.
  • retrieve_relevant_chunks_from_pinecone: generates a query embedding, queries two Pinecone indexes (ontario-docs, ontario-faqs), and returns top-K context chunks.
  • generate_response: constructs the RAG prompt using context + chat history and calls GPT-4 Turbo.
  • chatbot_interface: orchestrates the chat flow for a single request.
  • save_conversation_history: persists formatted conversation logs to S3 under ChatBot_History/.

• Data ingestion pipeline (database/)

  • doc_loader.py: pulls PDF/DOCX from S3 (raw_docs/), extracts text, chunks with RecursiveCharacterTextSplitter, embeds with text-embedding-3-small, and upserts to Pinecone.
  • constants.py: central config for embedding models, chunk sizes, index names, and other parameters.
  • index_setup.py: one-time script to create the Pinecone indexes.
  • query_pinecone.py: standalone query utility using LangChain for manual testing.
  • database/tests/: unit tests for the ingestion pipeline.

• Docs & deployment

  • docs/architecture.md: deep dive into the system design.
  • docs/api.md: API contract and payload shapes.
  • deployment/lambda/package.sh: packaging script for shipping Lambda with dependencies.

Architecture Diagram

Component Interactions

Frontend State Management

Deployment Architecture

Query Flow Summary

1. User enters a question in the React frontend.

2. Frontend sends a POST request to the API Gateway /chatbot endpoint.

3. Lambda:

   • Creates a query embedding using text-embedding-3-small.
   • Queries both Pinecone indexes (ontario-docs, ontario-faqs) with top_k results.
   • Combines and re-ranks results, selecting the best chunks as context.
   • Calls GPT-4 Turbo with a system prompt, chat history, and context.
   • Saves the conversation to S3 and returns the assistant reply plus updated history.

4. Frontend renders the response as markdown and updates the chat history in the UI.

Query Processing Flow (Detailed)

Ingestion Flow Summary

1. Legal PDFs/DOCX are uploaded to S3 under raw_docs/.

2. database/doc_loader.py:

   • Downloads each file from S3.
   • Extracts text with pdfplumber or python-docx.
   • Chunks text (500 characters, 100-character overlap) using LangChain's RecursiveCharacterTextSplitter.
   • Generates embeddings in batches using text-embedding-3-small.
   • Upserts the vectors and metadata into the appropriate Pinecone index.

Document Ingestion Pipeline (Detailed)

Features

• Legal RAG assistant for Ontario real estate – answers questions about closings, refinancing, and other real estate topics using real legal documents and FAQs.
• Dual-index retrieval – queries both a legal-documents index and an FAQ index in Pinecone, then ranks and combines results for richer context.
• GPT-4 Turbo responses with context – generates responses using GPT-4 Turbo conditioned on retrieved document chunks and conversation history.
• Document ingestion pipeline – extracts text from PDF/DOCX in S3, chunks it, embeds it, and upserts vectors into Pinecone.
• Multi-turn chat – tracks conversation history to support follow-up questions and more natural interactions.
• Conversation persistence – writes full conversation logs to S3 for auditing, debugging, or analytics.
• Serverless deployment – backend runs on AWS Lambda behind API Gateway, with automatic scaling and pay-per-use pricing.
• Type-safe frontend – React + TypeScript frontend with Tailwind styling and markdown rendering for assistant responses.
• Testing & tooling – pytest-based test suites, Black, isort, mypy, and dev requirements for a production-style workflow.

Tech Stack

• Languages

  • Python 3.8+
  • TypeScript
  • JavaScript

• Backend / ML / Data

  • OpenAI API (GPT-4 Turbo, text-embedding-3-small)
  • Pinecone vector database (serverless, cosine similarity)
  • LangChain (text splitting & optional retrieval utilities)
  • tiktoken (token-aware chunking)
  • pdfplumber, python-docx (document parsing)

• Frontend

  • React 19
  • Tailwind CSS
  • marked (markdown rendering)

• Cloud / Infra

  • AWS Lambda (containerized)
  • AWS API Gateway
  • AWS S3 (static frontend hosting + data + conversation history)
  • Docker (Lambda packaging)

• Tooling & Testing

  • pytest, pytest-cov, pytest-mock
  • Black, isort, mypy, flake8
  • pyproject.toml, pytest.ini, requirements-dev.txt

UI Screenshots

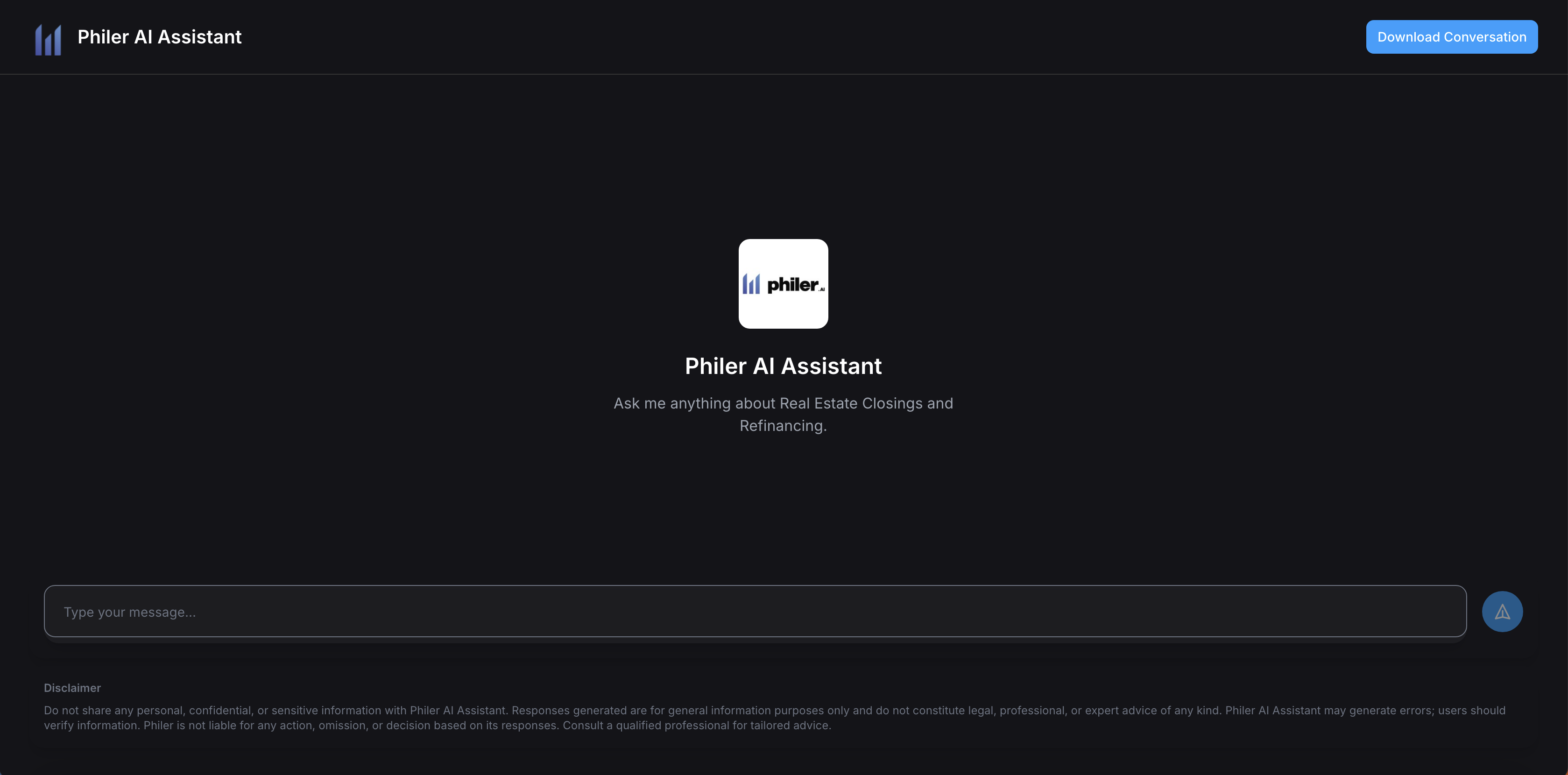

Home Page:

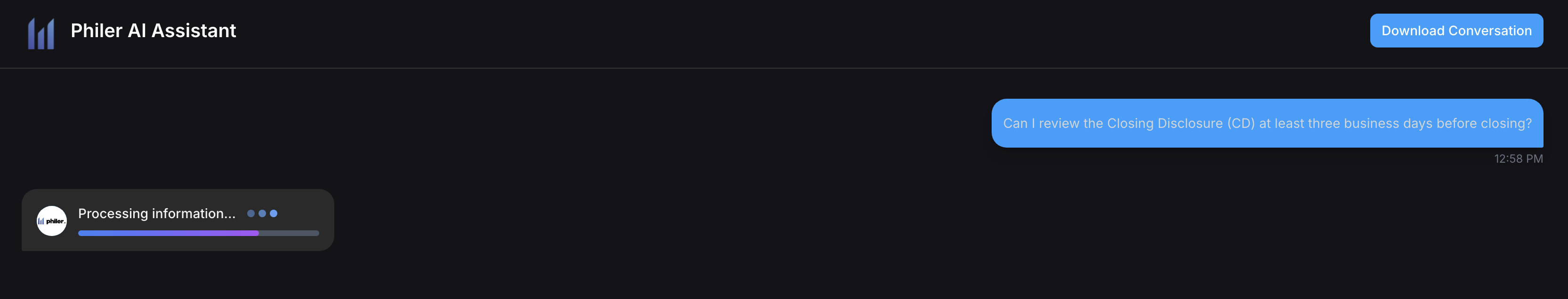

After sending a message:

Response:

What I Learned

• How to design and ship a production-ready RAG system that combines OpenAI, Pinecone, and AWS serverless components.
• How to build a dual-index retrieval pipeline that merges results from legal documents and FAQs into a unified context.
• How to structure a project with clear separation of concerns: ingestion, serving (Lambda), and presentation (React frontend).
• How to implement document ingestion pipelines for PDFs and DOCX, including text extraction, chunking, and embedding.
• How to use pytest and modern Python tooling (Black, isort, mypy) to keep a non-trivial codebase maintainable.

Future Improvements

• Add rate limiting to protect the API in production.
• Deliver explicit citations and document sources directly in the UI for better transparency.
• Implement response streaming from the backend for a more responsive chat experience.
• Tighten CORS configuration and environment isolation (dev/stage/prod S3 buckets and indexes).

Setup & Usage

Prerequisites

• Python 3.8+
• Node.js 16+
• An AWS account with CLI configured
• Pinecone account + API key
• OpenAI API key

1. Clone and configure environment

git clone <your-repo-url>.git
cd chatbot

Create a .env file at the project root:

OPENAI_API_KEY=your_openai_key
PINECONE_API_KEY=your_pinecone_key
PINECONE_INDEX_NAME=ontario-docs
PINECONE_FAQ_INDEX_NAME=ontario-faqs
AWS_ACCESS_KEY_ID=your_aws_access_key
AWS_SECRET_ACCESS_KEY=your_aws_secret
AWS_REGION=us-east-1
S3_BUCKET_NAME=philerchatbot

For the frontend, you can optionally create my-chatbot-frontend/.env.local with:

REACT_APP_API_URL=https://your-api-gateway-url.execute-api.region.amazonaws.com/dev

2. Set up the ingestion environment

pip install -r database/requirements.txt

Create Pinecone indexes (one-time):

python database/index_setup.py

Upload your PDF/DOCX legal documents to S3 under raw_docs/, then run:

python database/doc_loader.py

This will extract text, chunk, embed, and populate the ontario-docs and ontario-faqs indexes.

3. Run tests (optional, recommended)

pytest
# or to include database tests:
pytest tests/ database/tests/

4. Package and deploy the Lambda

cd deployment/lambda
./package.sh
# then use AWS CLI to update the function, e.g.:
aws lambda update-function-code \
  --function-name YOUR_LAMBDA_NAME \
  --zip-file fileb://lambda_package.zip

Make sure your Lambda environment variables match the .env values (OpenAI, Pinecone, S3, etc.).

Set up an API Gateway HTTP API with a POST /chatbot route pointing to the Lambda.

5. Run the frontend

cd my-chatbot-frontend
npm install
npm start

Open http://localhost:3000 in your browser for local development.

To build for production:

npm run build
# then deploy build/ to an S3 static hosting bucket

6. API Usage

Endpoint: POST /chatbot (behind API Gateway)

Request body:

{
  "message": "What documents do I need for closing?",
  "chat_history": [
    {"role": "system", "content": "You are a legal assistant..."},
    {"role": "user", "content": "Previous question"},
    {"role": "assistant", "content": "Previous answer"}
  ],
  "session_id": "uuid-string"
}

Response body:

{
  "reply": "For a real estate closing in Ontario, you need...",
  "chat_history": [...],
  "session_id": "uuid-string"
}

License

Private.
